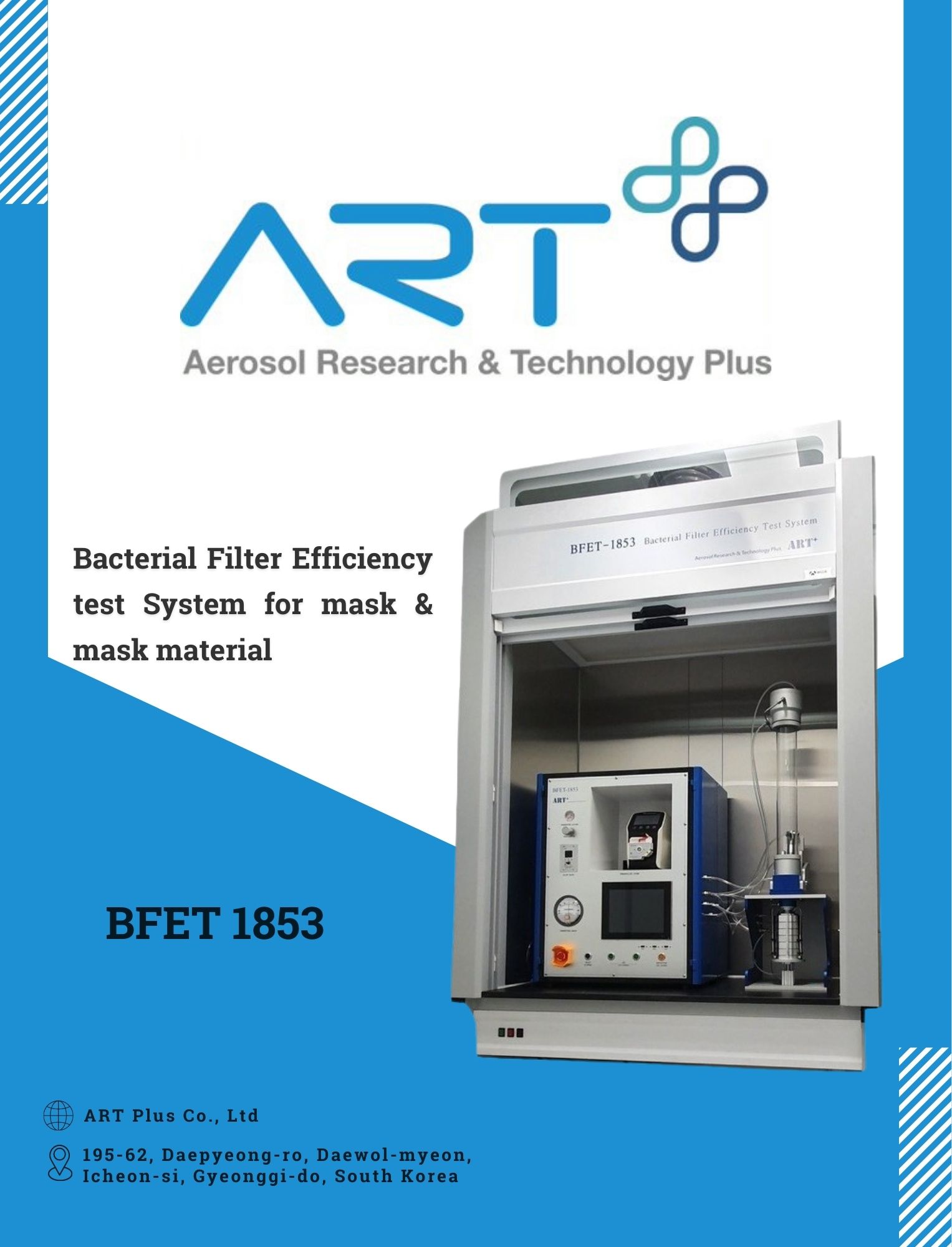

Model Name
BFET-1853
-
Specification
1,800 * 820 * 2,400 mm
-
Color
White, Blue
-
Introduction

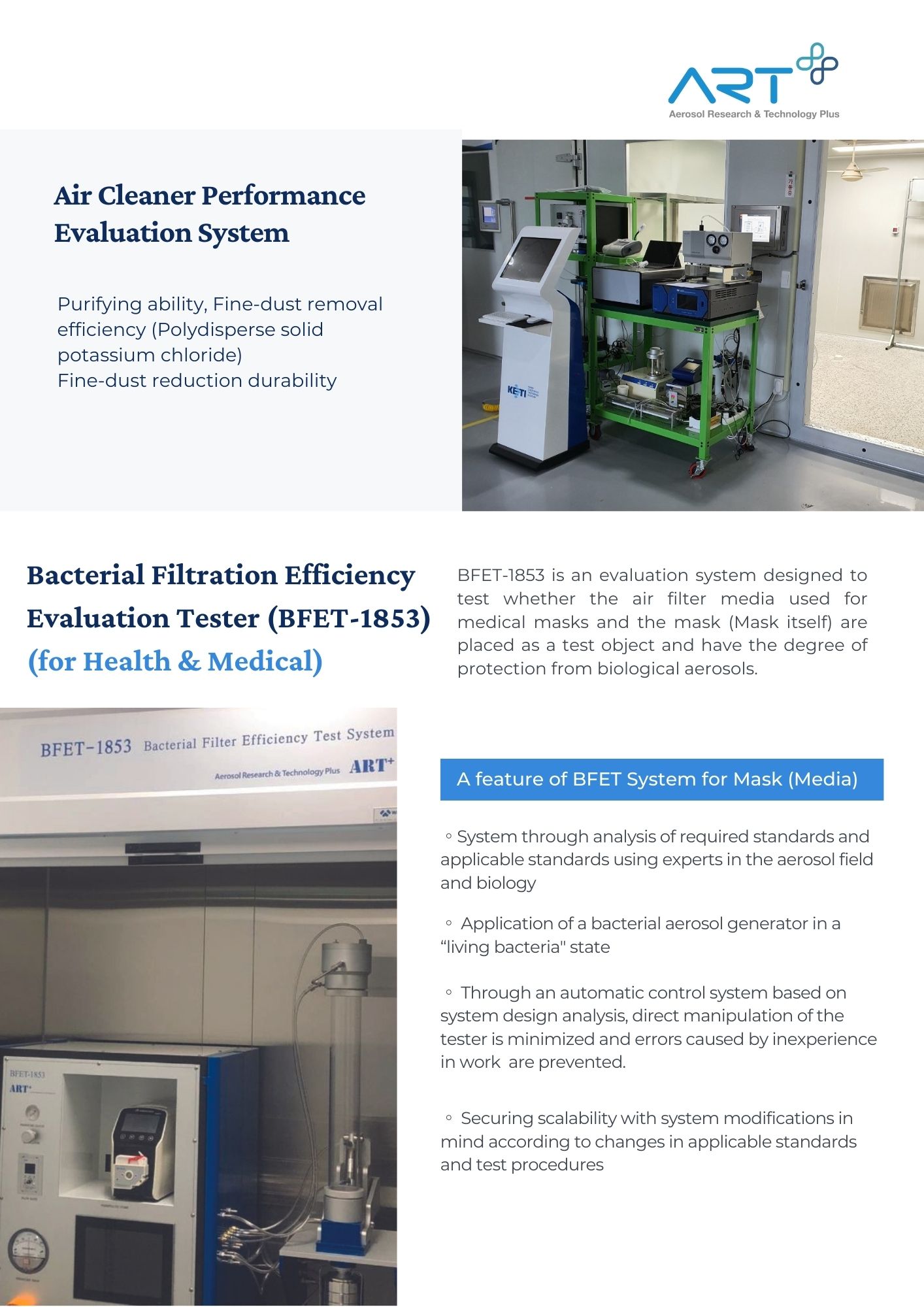

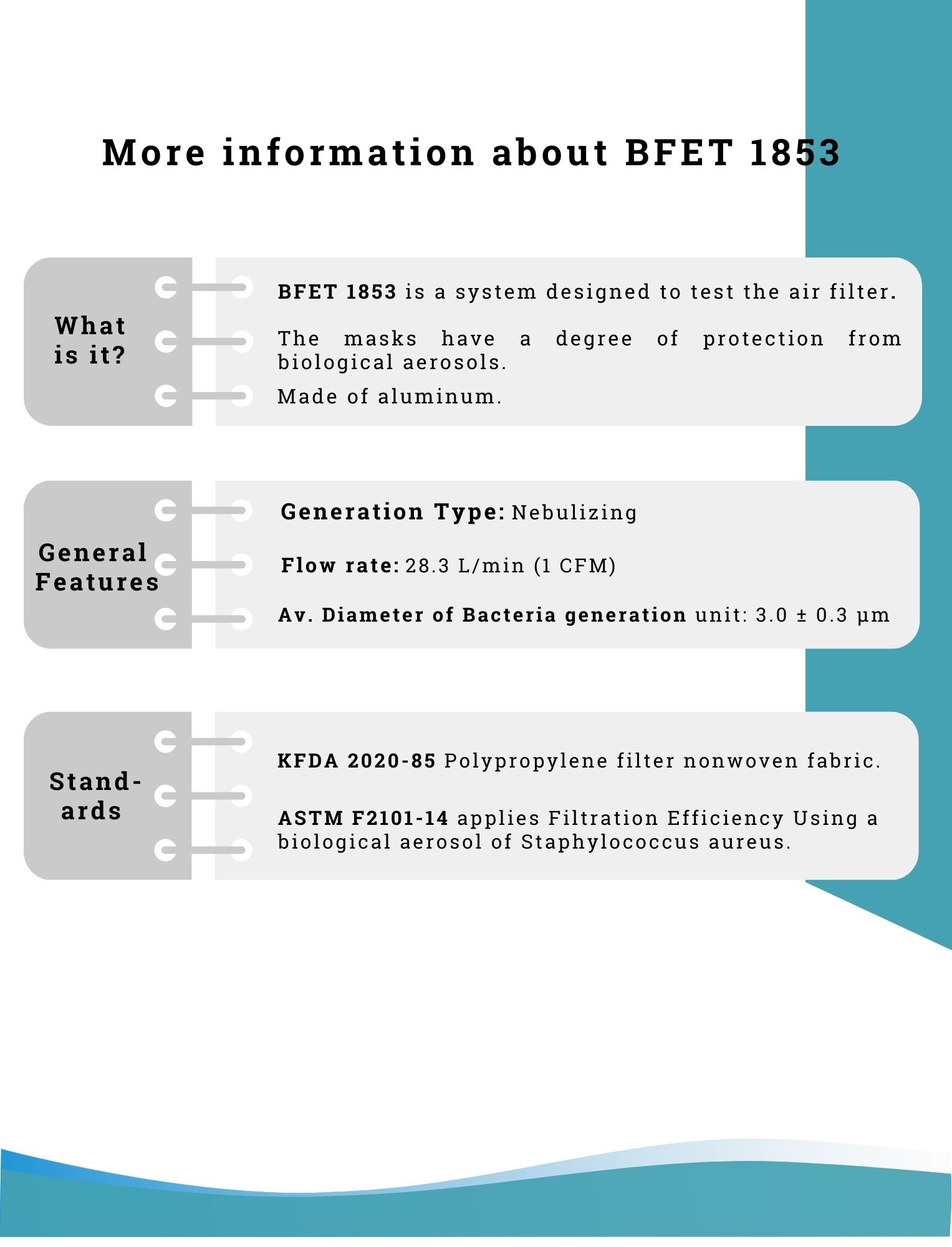

Test system Biological aerosols (Bacteria) filtration efficiency for filter media, or mask product
-
Certification
-
Price
-
Buy Sample
Medical Mask Performance
Evaluation System
A medical mask is
a product used to prevent the intrusion or infection of certain disease from
unexpected viruses or bacteria, etc. in hospitals. Therefore, in order to prove
the purpose of use as a medical respirator, all of the performance tests below must
be performed.
ART Plus's medical
mask performance evaluation equipment (smART) is a measuring equipment designed
in accordance with ASTM F2100-11 of ASTM International, a global organization
that develops and publishes technical standards for medical products,
materials, systems, and services. The performance of medical masks can be
tested according to the five evaluation criteria required by the standard.
Korean MFDS’s Guideline for Permission Review of ‘Medical Respiratory
Protective Equipment’ operates in the SAME way as FDA, ASTM, NIOSH, and
therefore respond to MFDS’s Guideline through smART Series.
|
Test item (Regulation) |
Test criteria |
Compulsory Test (FDA or NIOSH, select 1) |
Remarks |
|
|
FDA |
NIOSH |
|||
|
Differential Pressure (MIL-M-36954C) |
< 5 (or 6) mmH2O/cm2 |
Differential pressure |
Inhalation & exhalation Resistance test |
Breathability |
|
Bacterial Filtration
Efficiency (ASTM F2101:BFE) |
≥ 95% @ 3 μm or ≥ 98% @ 3 μm |
◎ |
- |
Determination of the
proportion of bacteria larger than 3 μm with Staphylococcus aureus |
|
Particle Filtration
Efficiency (ASTM F2299:PFE) |
≥ 95% @ 0.1μm or ≥ 98% @ 0.1μm |
◎ |
- |
Measure proportion of
particles larger than 1 μm filtered by the mask into the latex aerosol |
|
Synthetic Blood Penetration Resistance Tester (ASTM F1862) |
80(or 120, 160) mmHg |
◎ |
Assess the penetration
resistance of the mask with a smaill amount of artificial blood (~2㎖) |
|
|
Flammability (16 CFR Part 1610) |
Class1 or Class 2 |
◎ |
Measure combustion
maintenance time by touching a 16 ㎜ flame for 1 sec. |
|
|
Dust Filtration
Efficiency |
- |
◎ |
Average particle size
0.3 μm, 85ℓ/min |
|
|
Biological safety |
◎ |
Confirmation of
biological safety for human contact |
||
MFDS’s mandatory test list for medical respiratory protective equipment.
